TECHNOLOGICAL LINE

Technological line

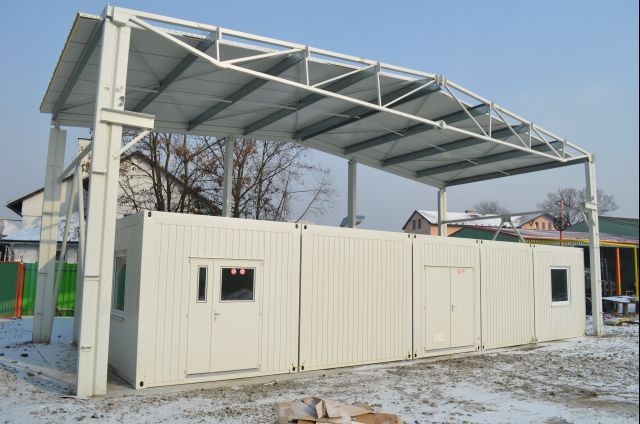

• A set of five mobile containers connected together, forming a single aggregate of the technological line
• The sites are separated by container walls

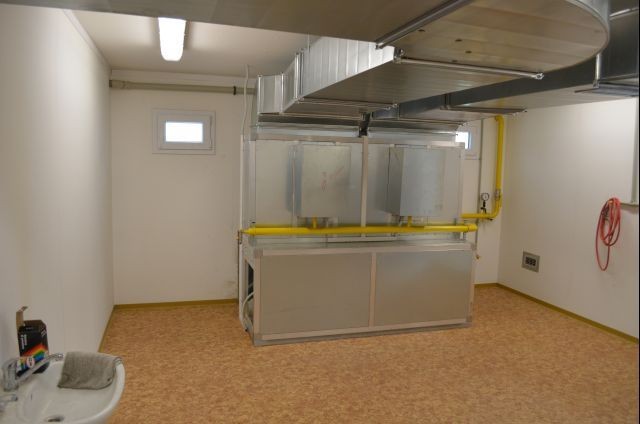

• Central heating by gas burners with air distribution to the entire technological aggregate
• Each site is equipped with electric convector heaters for tempering during rest days

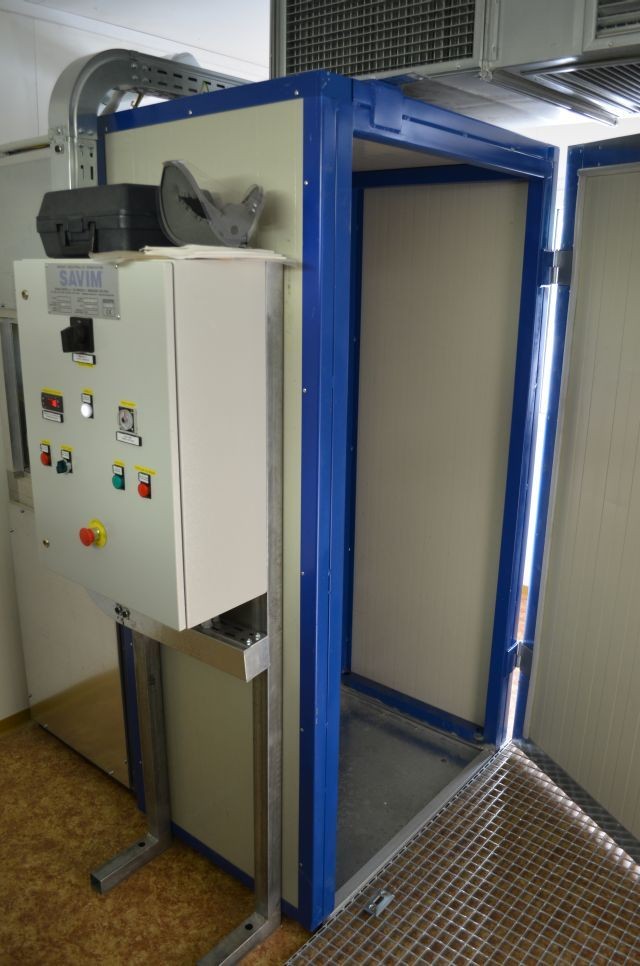

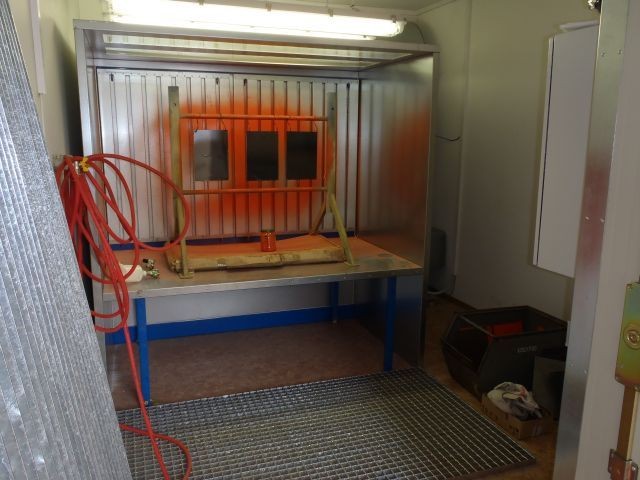

• A technological aggregate incorporating an air-blast site, metallizing site, painting site and a drying chamber

Air-blast site

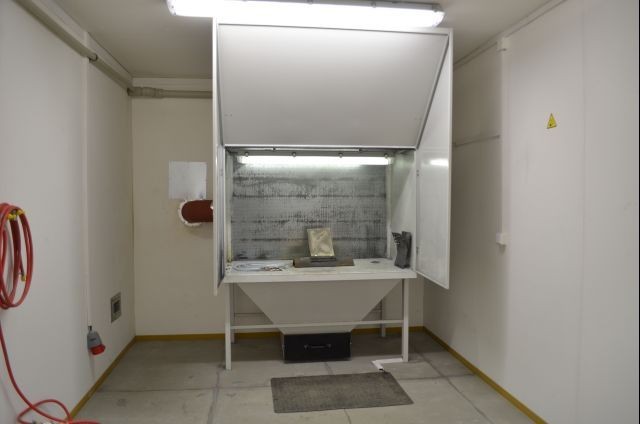

• Injector air-blast box VIKOMT 1010 A with a working area of 950 x 950 mm
• The working table is equipped with a rotary table
• Cyclonic abrasive separator
• The air-blast box contains its own filtration equipment

Metallizing site

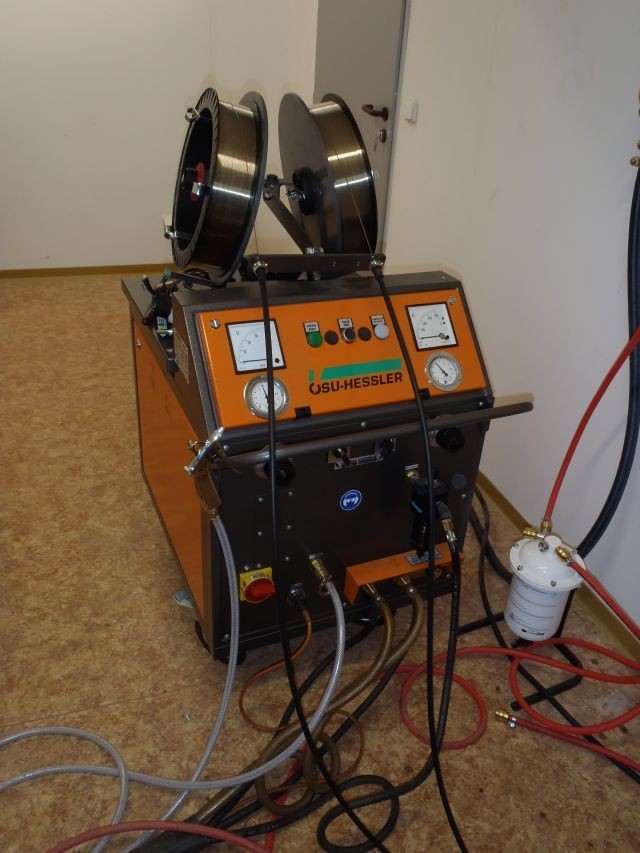

• Electro-metallizing machine OSU HESSLER 300 A LD/U-2

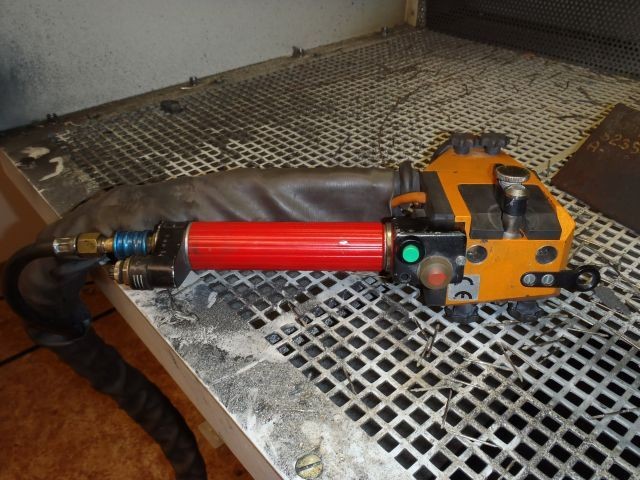

• Manually controlled metallizing gun
• Metallizing table with exhaust

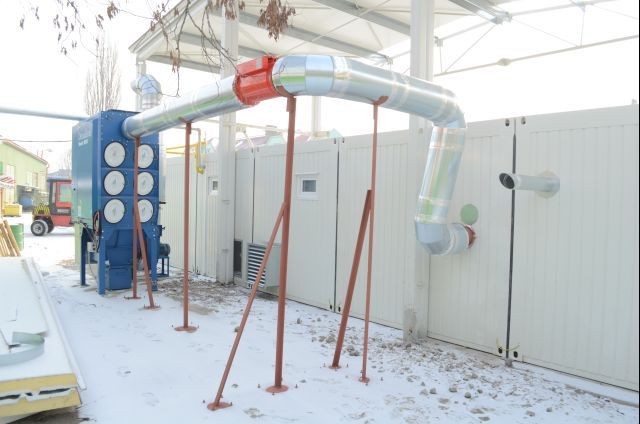

• Donaldson DFO filtration system in the ATEX
